Currently the only way to output SAS datasets as a multi-sheet EXCEL workbook for reporting is to use ExcelXP ODS tagset. I like this method a lot, because it can generate stylish multiple EXCEL sheets and is highly customizable. However, in practice it has some weaknesses. 1 - Running this tagset is resource-costly, since it depends on an 8k lines SAS codes - ExcelXP.sas. While dealing with a large SAS dataset, it always gets jammed. 2- It only allows one grouping variable by the BY statement inside the output procedures (PROC REPORT, PROC PRINT, etc.). 3 - The user often has to estimate the width for each column in EXCEL.

Actually we can use SAS macro and VBA macro together to obtain high-quality multi-sheet EXCEL workbook. The workflow is pretty simple: first a SAS macro splits a SAS dataset into many XLS files in a folder through ODS HTML targset. Second a VBA macro merges those single XLS files as sheets in to a workbook. For example, SAS shipped with a sample dataset SASHELP.PRDSAL2 with 23040 observations and 11 variables. If we want to generate a multi-sheet EXCEL workbook grouped by two variables such as ‘state’ and ‘year’, we can set up an empty directory in the hard disk and run a macro like below. As a result, we will have a number of small XLS files.

%macro split(data = , folder = , clsvar1 = , clsvar2 = );
options nocenter nodate nonumber ps = 9000;
title; footnote;
ods listing close;
proc sql noprint;
create table _tmp01 as
select &clsvar1, &clsvar2, count(*) as number
from &data
group by &clsvar1, &clsvar2
order by &clsvar1, &clsvar2
;quit;
data _tmp02;
set _tmp01 nobs = nobs;
where number gt 0;
index = _n_;
call symput('nobs', nobs);
run;
%do i = 1 %to &nobs;
proc sql noprint;
select &clsvar1, &clsvar2
into:clsvar1name,:clsvar2name
from _tmp02
where index = &i
;quit;
%let filepath = &folder\%sysfunc(dequote(&clsvar1name))_%sysfunc(dequote(&clsvar2name)).xls;
ods html file = "&filepath " style = minimal;
proc print data = &data noobs label;
where &clsvar1 = "&clsvar1name" and &clsvar2 = &clsvar2name;
run;
%end;
ods listing;
ods html close;
%mend;
%split(data = sashelp.PRDSAL2, folder = C:\test1, clsvar1 = state , clsvar2 = year)

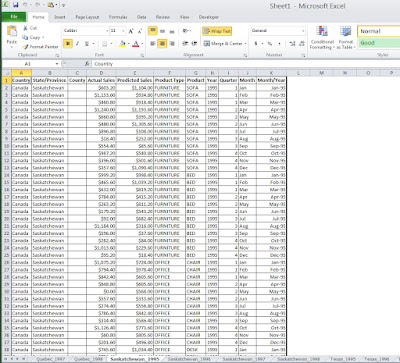

Then we can open EXCEL, press ALT+F11, paste the VBA code below and run it. Then we will be able to have a decent multi-sheet EXCEL workbook. The biggest strength for this method is that it is very fast – the overall process (running SAS macro and VBA macro) only takes less than a minute for this relatively large dataset SASHELP.PRDSAL2. And it can be expanded to many grouping variables by modifying the SAS macro a little. In conclusion, for big data EXCEL reporting, combining SAS macro and VBA macro together is a good alternative other than ExcelXP ODS tagset.
